Data center monitoring device AMC16 seriespowercurrentvoltage
Add to favorites
Compare this product
Characteristics
- Type
- power, current, voltage
- Applications
- data center
- Interface
- RS-485
Description
General
AMC16Z sériés multi-loop acquisition module is independently designed to meet the needs of the increasingly high précision power distribution management requirements of the data center. It suitable for various all-round intelligent monitoring of terminal distribution equipment.

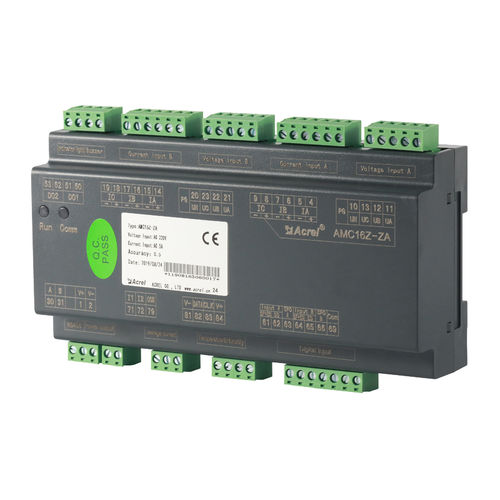

AMC16Z-ZA Data Center Monitor Device
● Designed specifically for the power supply management of server in the data center
● A+B independent 2 channels three-phase inlet
● U, I, P, Q, S, PF, kWh, kvarh
● 2nd-63rd Harmonic
Function
*A+B independent 2 circuits three-phase main line bus bar’s voltage, current, active power, reactive power, apparent power, power factor, active power, reactive power, zero ground voltage, midline current, 2-63 harmonics of voltage and current
*6 passive switching input
*2 switching output
*1 RS485 communication
