Three-phase electric energy meter AEW100
DIN railmulti-function

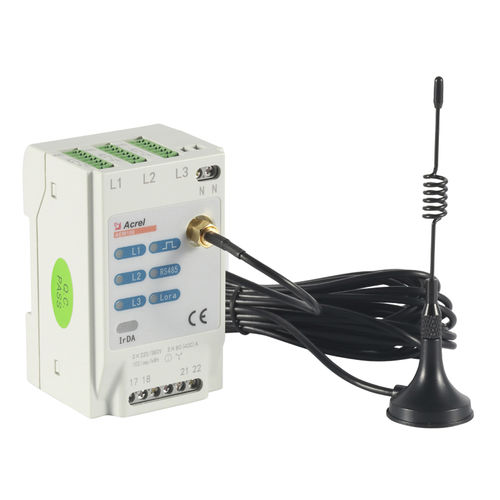

Three-phase electric energy meter - AEW100 - ACREL CO., LTD. - DIN rail / multi-function
Three-phase electric energy meter - AEW100 - ACREL CO., LTD. - DIN rail / multi-function
Three-phase electric energy meter - AEW100 - ACREL CO., LTD. - DIN rail / multi-function - image - 2
Three-phase electric energy meter - AEW100 - ACREL CO., LTD. - DIN rail / multi-function - image - 3
Add to favorites
Compare this product


Characteristics

Type
three-phase
Assembly
DIN rail
Other characteristics
multi-function
Voltage

100 V, 220 V, 380 V

Primary current

200 A, 400 A, 600 A

Description

Overview AEW 100 wireless measurement module is mainly used for metering three phase active energy on low voltage network. There are functions like RS485 communication and wireless communication on 470MHz in order to help customers check, get and manage the value of energy consumption. This kind of production can be installed in distribution box flexibly, achieving the different demand of measurement and statistics of distribution on different areas and different loadings. AEW100 Wireless Energy Meter AEW 100 is a multifunction power meter. There are functions like RS485 communication and Lora communication on 470MHz. With build-in MODBUS-RTU protocol, AEW100 can match most of the system integrate requirement. AEW100 has the advantage of higher accuracy, more compact and easy installing. Function Accuracy Active energy: Class 1 Frequency Range:50Hz Pulse output 1channel for kWh Constant:6400imp/kWh 、400imp/kWh、200imp/kWh、100imp/kWh、60imp/kWh Consumption <2VA Auxiliary power supply 220Vac
