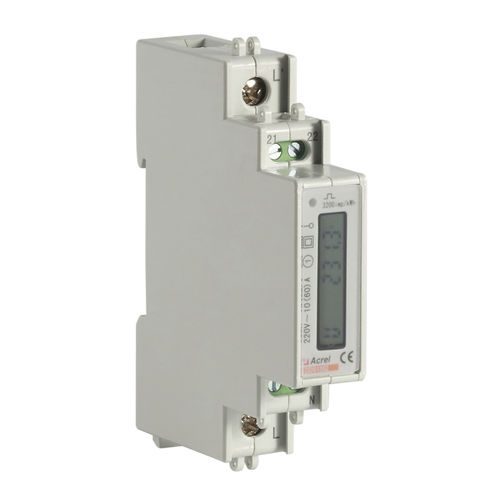

Single-phase electric energy meter ADL10-E DIN rail50 Hzwith LCD display
Add to favorites
Compare this product
Characteristics
- Type
- single-phase
- Assembly
- DIN rail
- Other characteristics
- 50 Hz, with LCD display
- Voltage
220 V
- Primary current
10 A
Description
General
ADL10-E single phase electric meter is designed for single phase energy measurement on low voltage system.The meter meet the related technical requirements of electronic meter in the IEC62053-21> IEC62053-22 standards.
ADL10-E Single Phase Electric Energy Meter
● AC 220V
● 10（60）A
● RS485，MODBUS-RTU
● LCD display
● kWh Class 1，Kvarh Class 2
● U、I、P、Q、S、PF、kWh、kvarh
● DIN 35mm
Function
Accuracy
kWh Class 1，Kvarh Class 2
Frequency
50HZ
Auxiliary power supply(self supply):
AC 220V（L-N），range：154~264Vac
Consumption
<10VA(Single phase)
Catalogs
No catalogs are available for this product.
See all of ACREL CO., LTD.‘s catalogs
