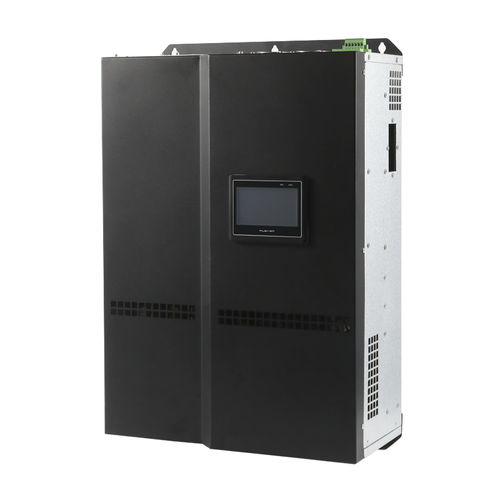

Harmonic compensator ANAPF

activeintelligent

Principles of the ANAPF The active power filter is a new type of power electronic device used for controlling harmonies, compensating reactive power, and regulating imbalance. When the equipment is connected in a low-voltage distribution System with harmonie loads in parallel, the integrated intelligent control System could automatically adjust the output of the module according to the linear dynamic demand of the System. The whole machine is mainly composed of multiple ANAPF modules to meet the actual requirements of compensating. In addition, the device also has a 7-inch LCD screen which communicates with the module in real time via the RS485 protocol, enabling users to interact with the device. ANAPF: Active Power Filter ANAPF is connected in a low-voltage distribution system with harmonic loads in parallel，which has the ability to realize fast and real-time tracking and compensation of dynamically changing harmonic currents. Mainly used in hospitals, commercial plazas, manufacturing, data centers, charging piles, airports, photovoltaics and other industries. Function 1）Flexible compensation method：Compensate for harmonics only, compensate for reactive power only, compensate for both harmonics and reactive power，could compensate for 2th-25th harmonics or compensate for specific harmonics; 2）Ability of managing three-phase imbalance; 3）Linear compensation，Response time ≤ 5ms; 4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;
