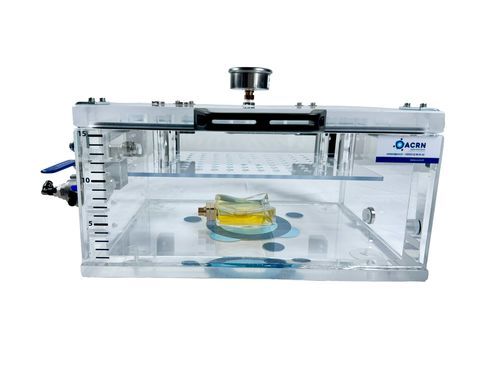

Vacuum leak tester CTS

pneumaticfor packagingfor bottles

The CTS allows, in the same way as the CTE, to test the tightness of industrial packaging such as vials, bottles, flasks, etc. Suitable for production environments, it features only a fully pneumatic system, capable of creating a vacuum, a compressed air control valve to limit incoming flow, and a needle pressure gauge. This model is available with a vacuum pump system for vacuuming. Benefits Fully pneumatic No maintenance Intuitive and easy to use Customised housing possible, adapted to the customer’s needs Technical information Box - Transparent PMMA chamber on hinge Range of measurements and accuracy - From -0.1 to -0.85 Bar as standard. Accuracy + / -2 % Fully controlled by a microprocessor card Useful dimensions - It depends on the size of box. Reading the depression - Needle pressure gauge 50 mbar resolution Units Bar, Psi Power supply - On compressed air 7 bar network connected to Rislan® 8mm pipe. (not included) / Vacuum pumps (Max -920 mbars) Depression adjustment - Regulator with filter Depression time - Adjustable time device from 0 to 999 s Principle of the test - Visual Temperature - From 0 to 40°C Standards - ASTM D4991, ASTM D5094, ASTM D4169, EN14401, DIN55528 Options Decrease in depression time (venturi more powerful) Air drain valve for easy return to PA. Safety gas springs Manovacuometer with needle with better resolution Vacuum pump replacing compressed air Included A calibration certificate LNE / COFRAC
