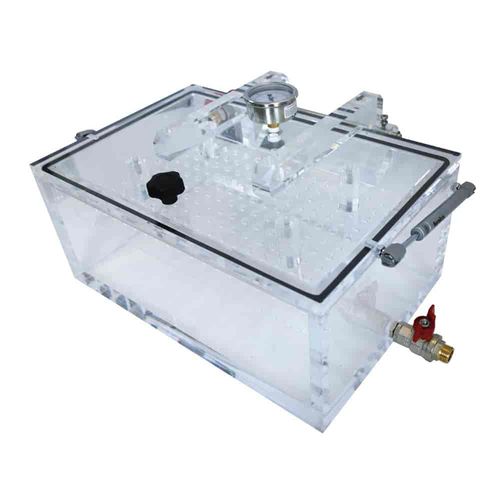

Vacuum leak tester CTS-I

pneumaticfor packagingfor bottles

The CTS allows, in the same way as the CTE, to test the tightness of industrial packaging such as vials, bottles, flasks, etc. Suitable for production environments, it features only a fully pneumatic system, capable of creating a vacuum, a compressed air control valve to limit incoming flow, and a needle pressure gauge. A perforated plexiglass plate, called a presser, allows the product to be held in immersion. The presence of a leak is detected by the appearance of bubbles in the water during the vacuum and is thus precisely located. This model is available with a vacuum pump system for vacuuming. Benefits Fully pneumatic No maintenance Intuitive and easy to use Numerous accessories and fittings available to suit the customer’s needs Technical information Box - Transparent PMMA chamber on hinge Range of measurements and accuracy - From -0.1 to -0.85 Bar as standard. Accuracy + / -2 % Fully controlled by a microprocessor card Useful dimensions - It depends on the size of box. Reading the depression - Needle pressure gauge 50 mbar resolution Units - Bar, Psi Power supply - On compressed air 7 bar network connected to Rislan® 8mm pipe. (not included) / Vacuum pumps (Max -920 mbars) Depression adjustment - Regulator with filter Depression time - Adjustable time device from 0 to 999 s Principle of the test - Visual Temperature - From 0 to 40°C Options Decrease in depression time (venturi more powerful) Air drain valve for easy return to PA. Safety gas springs Manovacuometer with needle with better resolution Vacuum pump replacing compressed air Included A calibration certificate LNE / COFRAC
