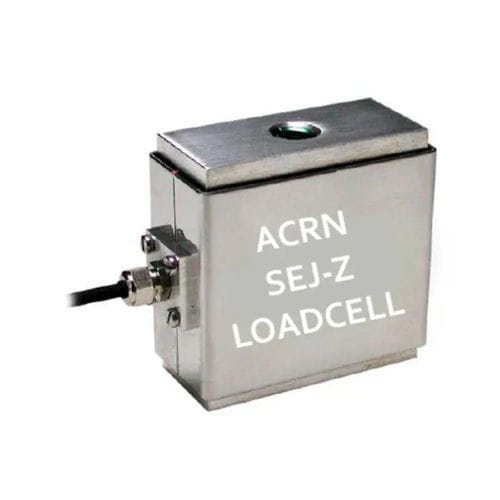

Tension load cell SEJ-ZS-beamhigh-precisionprecision
Add to favorites
Compare this product
Characteristics
- Type
- tension
- Form
- S-beam
- Other characteristics
- high-precision, compact, precision, aluminum
- Rated force
Min.: 10 N
Max.: 2,000 N
- Length
2 m
(6'06" )
Description
High precision loadcells for tension & compression, Recommended for all high precision measurements, test benches, laboratory tests, process control equipments. These loadcells are protected against accidental overloads in tension and compression.
“S” load cells provide superior performance in compact packaging.
Connected with ACRN measurement consoles.
Benefits
Tension & compression
Mechanical stop
IP 50 Protection class
Options
Rings and hooks
Rod ends
Load button
Longer length for cable
Technical informations
Output impedance -
390 Ohms
Sensitivity -
2mV/V
Construction -
Body in aluminium and cover in stainless steel
Power supply -
10 V (Max 15V)
Combined linearity & hysteresis -
0,05% F.S (Full scale)
Offset -
< ± 1 mV
CE Conformity -
EN 61010-1, EN 50081-1, EN50082-1
