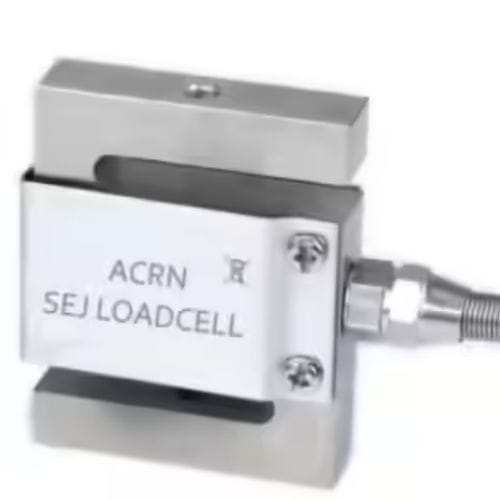

Tension load cell SEJ

S-beamstrain gauge2 mV/V

High precision loadcells for tension & compression, recommended for all high precision measurements, test benches, laboratory tests Usable with load rings or buttons for better performance. “S” load cells provide superior performance in compact packaging. The special steel body is protected against corrosion by electrolytic nickel deposition. Connected with ACRN measurements console. Description Benefits Tension & compression Very good mechanical properties Treated steel-IP 64 Protection class Options Rings Rod ends Clevis fork Load button Custom cable length Technical informations Output impedance - 350 Ohms Output signal - 2mV/V Construction - Treated steel, chemical nickel plating Power supply (Max) - 10 V (Max 15V) No linearity - 0,02% F.S (full scale) Hysteresis - 0,02% F.S (full scale) Repetability - 0,02% F.S (full scale) Safe overload - 150% F.S (full scale) Safe overload - 300% F.S (Full scale)
