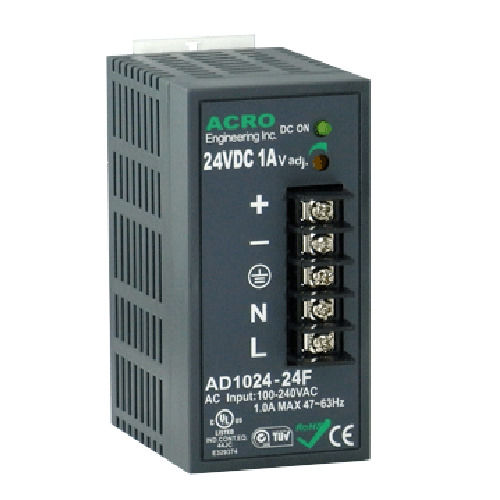

AC/DC power supply AD1024F series

multiple-outputDIN railcompact

This series includes AD1020-05F, AD1024-12F and AD1024-24F that with 100-240VAC universal input range and complete protection design. The DIN rail / bracket mounting solution and compact dimensions let the models be suitable for distribution board that supplying power source for PLC, HMI and I/O devices. Long life aluminum electrolytic capacitor, 100% burn-in testing and moisture proof coating to let the industrial power supply series be rugged power supply, robust power supply and heavy duty power supply. All models are RoHS compliance, CE marking and meet UL508 requirement. OUTPUT Hold-up time (Full load@230VAC):20mS Min. Over voltage protection:Autorecovery Overload protection:Power limited Short circuit protection:Autorecovery Features Rugged, robust and heavy duty design of industrial grade power supply Convection air cooling Over voltage protection Overload protection Short circuit protection DIN rail / bracket mounting solution High power density High reliability Small size, high efficiency, low cost Comply with RoHS / UL / CE Standard 3-year quality warranty Operating Environment Operating temperature: -40℃ to 50℃ degrees Operating humidity: non-condensing 5% to 95% relative humidity
