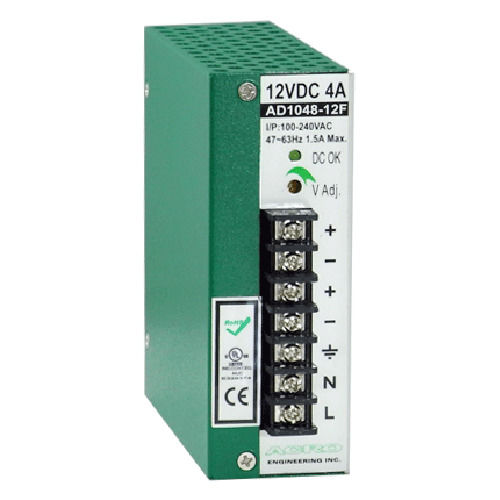

Redundant power supply AD1048FR series

AC/DCmultiple-outputDIN rail

This series includes AD1040-05FR, AD1048-12FR, AD1048-24FR and AD1048-48FR that with 100-240VAC universal input range and complete protection design. The DIN rail / bracket mounting solution and compact dimensions let the models be suitable for distribution board that supplying power source for PLC, HMI and I/O devices. Long life aluminum electrolytic capacitor, 100% burn-in testing and moisture proof coating to let the industrial power supply series be rugged power supply, robust power supply and heavy duty power supply. All models are RoHS compliance, CE marking and meet UL508 requirement. Built-in O-ring diode and dry contact alarm signal (relay) to achieve redundant function. INPUT Input voltage:100~240VAC/120~370VDC Input frequency:47~63Hz Inrush current:22A/115VAC (Cold start) 44A/230VAC OUTPUT Hold-up time (Full load@230VAC):20mS Min. Over voltage protection:Autorecovery Overload protection:Power limited Short circuit protection:Autorecovery Features Innovative design of industrial-grade power supply rail Natural convection air cooling High voltage protection Current overload protection Short circuit protection Din rail / retainer lock with fixed protection Selective warning signals (dry contact) / redundancy High power density High reliability Small size, high efficiency, low cost Comply with RoHS / UL / CE Standard 3-year quality warranty Operating Environment Operating temperature: -40 to 50 degrees Operating humidity: non-condensing 5% to 95% relative humidity
