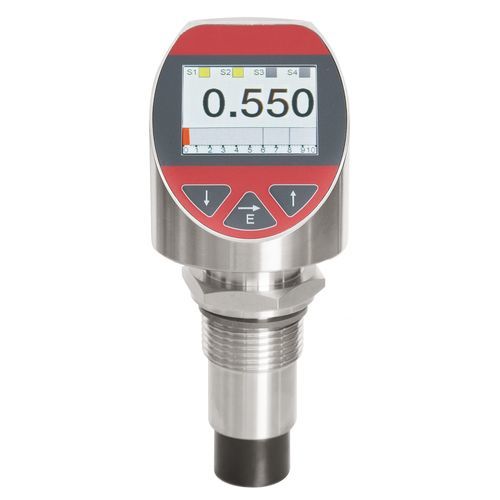

Ultrasonic level sensor SONICONT USN4

for liquidsfor solids4-20 mA

The Sonicont USN4 is an electronic level transmitter / level switch for monitoring, control as well as continuous measurement of filling levels in liquids, pastes and coarse bulk materials. Additional application fields are volume or flow measurement. The software was optimized and extended by a new algorithm. The Sonictrack is a better algorithm for the detection of ultrasonic signals, so that interference signals e.g. agitators etc. can be recognized even better and thus a safe operation can be ensured. Due to the device construction with measuring ranges of 2m / 5m / 8m, process temperatures from –40°C to +85°C and process materials PVDF / CrNi-steel / EPDM as well as the availability of extensive equipment and functionality predefined vessel types for fast commissioning, predefined linearization curves for volume and flow measurement, integrated error signal suppression for adaption the installation situation, integrated compensation of the process temperature, limit value function for two-point control, pump control function, impulse output function for quantity counter and error indication function for error monitoring the device is especially suitable for the use for level and volume measurement and flow measurement at open channels and measuring weirs for water and waste water sector, process industry, environmental technology, storage tanks, storage bunkers, silos. The device is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications.
