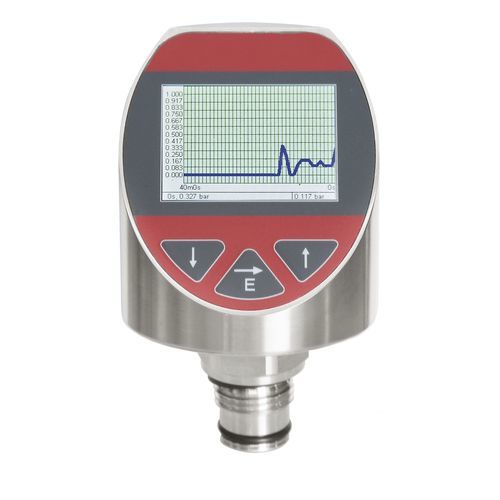

Relative pressure transmitter PRECONT PN4SM

4-20 mABluetoothflush diaphragm

The device Precont PN4SM is an electronic pressure transmitter / pressure switch for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from -1 bar to 1000 bar (gauge), measuring ranges from 0 bar to 1000 bar (absolute), measuring spans from 400 mbar to 1000 bar, process temperatures from –40°C to +125°C, process material CrNi-steel as well as the availability of industrial standard process connections like thread ISO 228-1 (EN 837 manometer, front-flush) the device is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry, environmental technology, facility and building automation. The device Precont PN4SM is suitable for demanding measuring requirements. Due to its high accuracy and the high flexibility of configuration, the device can be suited a wide variety of applications. The front-flush diaphragm has been specifically designed for the measurement of viscous, paste-like, adhesive, crystallizing, particle-laden and contaminated media, which would clog the pressure channel of conventional process connections.
