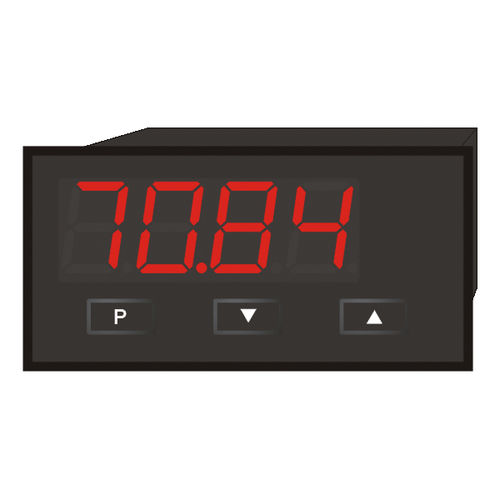

Current loop panel meter DAK-101

4-digitwith LED display4-20 mA

red display from -1999…9999 digits (optional: green, orange or blue display) low installation depth: 27 mm without plug-in terminal Display adjustment via factory specifications or directly on the sensor signal possible Min/Max memory 10 configurable support points Display flashing when the limit value is exceeded/falls below tare function Programming lock via code entry Degree of protection: IP65 on the front pluggable screw terminal Accessories: PC-based configuration software with CD and USB adapter for displays without a keyboard and for easy configuration of standard devices
