Ultrasonic flaw detector A1040 MIRA 3D

for concrete structuresportable

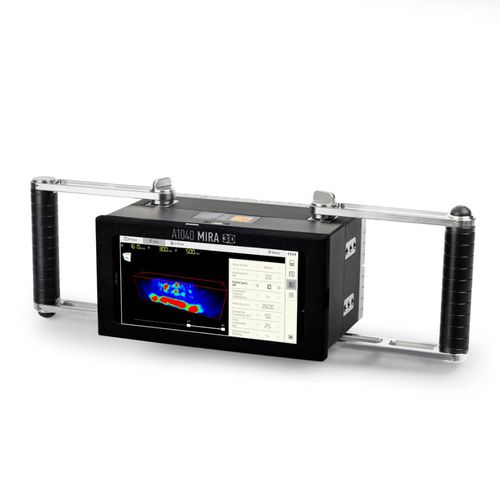

ULTIMATE ULTRASONIC TOMOGRAPH FOR QUALITY ASSESSMENT OF CONCRETE STRUCTURES: THICKNESS MEASUREMENT, REBAR LOCALIZATION, FLAW DETECTION WITH ULTRASOUND A1040 MIRA 3D is a low-frequency ultrasonic tomography system suitable for manual and automated assessment of concrete structures. Due to its novel A-DPC® sensor technology, the new MIRA provides unbeatable penetration depth, inspection sensitivity, and imaging resolution by implementing three-dimensional FMC / TFM in each instrument position. The instrument consists of a lightweight body with 4 x 8 Active Dry-Point-Contact transducers with integrated pulser-receiver circuits and parallel DAQ electronics wirelessly connected to the powerful smartphone that implements image reconstruction and visualization algorithms by means of parallel graphic processor units on-board. This hardware solution allows achieving the highest performance for real-time 3D-TFM imaging. With special transmitting techniques such as E-Boosting, an outstanding penetration depth has been achieved even by using the instrument's relatively small active aperture. Although, for additional extension of the inspection range arbitrary aperture extension can be utilized by two and more array units in one configuration. MIRA NEO DESKTOP software for remote unit control and 3D visualization & analysis of Big Data is an essential part of the instrument delivered in the standard delivery set. The open data format for customized developments by the user – for offline and online applications – completes the functional package of this extraordinary instrument.
