Ultrasonic flaw detector A1040 MIRA
3D imagingfor concrete structuresportable

ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic, 3D imaging
Applications
for concrete structures
Portability
portable, autonomous

Description

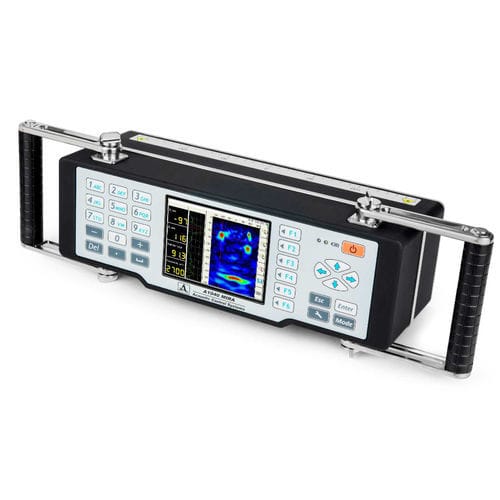

THE ULTRASONIC PULSE-ECHO FLAW DETECTOR - TOMOGRAPH FOR QUALITY ASSESSMENT OF CONCRETE INFRASTRUCTURE WITH 3D IMAGING OF INSPECTION VOLUME A portable handheld ultrasonic tomograph is designed for imaging of the internal structure of concrete at one-sided access The tomograph represents fully-autonomous measurement unit for collection and tomographic processing of the data obtained. Measurement unit contains a matrix antenna array from 48 (12 blocks, each containing 4 elements) law-frequency broad banded transducers of shear waves with dry-point-contact and ceramic wear resistant tips. Hence they can work with rough surfaces for the long time. Each transducer is equipped with an independent spring suspension, thus allowing inspection on the uneven surfaces. Nominal frequency of the array is 50 kHz. Instrument’s interface allows working with laser beams which are projected on a surface of the testing object. Hence the operator can correctly maintain a shift step of the antenna array during a complete technical diagnostics of the testing object. Handheld light-weight body and a repositionable handle provide convenient working with the instrument on the horizontal, vertical and roof surfaces. A reference scale on the lower part of the instrument’s body is designed for convenient localization of the defects relative to the antenna device. Large and bright TFT display and a keyboard allow easy adjustment of the instrument to the testing object, selection of the required operation modes and conduct an inspection, watching the results obtained, which allows their initial analysis.
