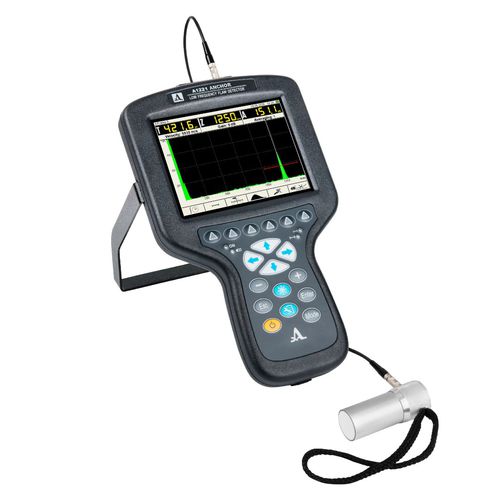

Ultrasonic flaw detector A1221 ANCHOR

for anchor bolt

A1221 ANCHOR is an ultrasonic instrument for in-situ evaluation of embedded metallic elements by means of low-frequency ultrasonic waves. The main application field of A1221 ANCHOR is the non-destructive testing of anchor bolts and similar structural elements. Following evaluations can be performed by placing ultrasonic transducer on the free outer end of the bolt: • Detection of anchor breaks • Residual length/fraction assessment • Adhesion quality assessment Application features: Assessable bolt / rebar diameter - 20-40 millimeters (0.8-1,6 inch) Not grouted assessment length - up to 8 meters (26.3 feet) Minimal assessment length - 0.3 meter (9.8 feet) Assessable grouting depth in concrete: - up to 1 meter (3.3 feet) Assessable grouting depth in rock: - up to 4 meters (13.1 feet)
