Shear wave ultrasonic transducer S1801
cylindricalcontactdirect-contact

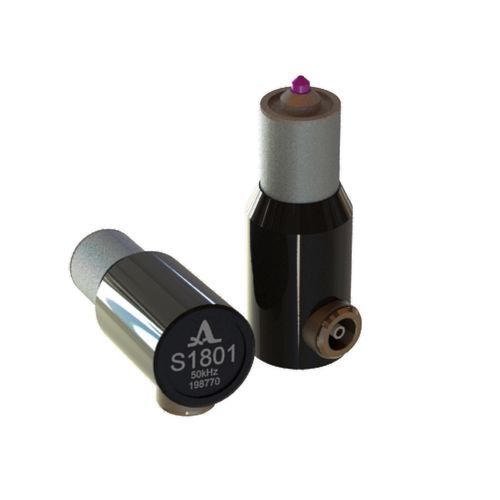

Shear wave ultrasonic transducer - S1801  - ACS-Solutions GmbH - cylindrical / contact / direct-contact
Shear wave ultrasonic transducer - S1801  - ACS-Solutions GmbH - cylindrical / contact / direct-contact
Add to favorites
Compare this product


Characteristics

Configuration
cylindrical
Technology
contact
Use
direct-contact
Other characteristics
longitudinal wave, low-frequency
Applications
shear wave
Frequency

Min.: 20 kHz

Max.: 80 kHz

Description

Low-frequency ultrasonic transducer for transmitting or receiving the longitudinal ultrasonic waves in a broad frequency range from 20 to 80 KHz for ultrasonic pulse velocity testing. A general-purpose low-frequency transducer with a nominal frequency of 50 KHz for the dry-point-contact (DPC) excitation or acquiring shear ultrasonic waves in highly scattering materials (concrete, wood, stones, etc.) It can be used in ready-made housing with the Lemo00 plug or non-wired for self-tailored applications, e.g. for customization of transducer arrays by the customer. The following ACS instruments can drive the transducer: • A1560 Sonic-LF • A1220 MONOLITH Parameter - Value Transducer type - Dry Point Contact Ultrasonic wave mode - Shear Nominal frequency - 50 KHz Capacity - 5000±500 pF Maximal pulse voltage (peak-to-peak) - ± 200 V Temperature range - -20 to +50ºC Weight - 14 g
