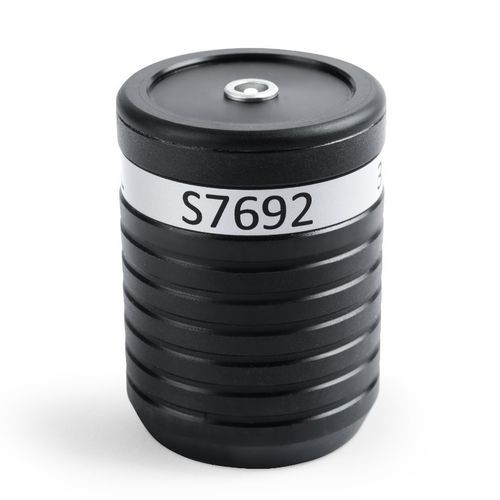

Radial ultrasonic transducer S7692
electromagneticelectromagnetic acoustic (EMAT)shear wave

radial ultrasonic transducer
radial ultrasonic transducer
radial ultrasonic transducer
radial ultrasonic transducer
Add to favorites
Compare this product


Characteristics

Configuration
radial
Technology
electromagnetic acoustic (EMAT), electromagnetic
Applications
shear wave
Frequency

3 MHz

Description

EMAT - electromagnetic-acoustic transducer for transmitting and receiving the ultrasonic shear waves with circular polarization An electro-magnetic acoustic transducer S7692 for the couplant-free transmitting and receiving ultrasonic shear waves can be used for thickness measurements by A1270 EMAT. The following ACS instruments can drive the transducer: • A1270 EMAT Transducer type - EMAT Type of generated wave mode: - Shear wave, radial polarization Nominal frequency - 3 MHz Effective aperture diameter - 10 mm Inspection range - 1 to 100 mm Lift-off / through-coating thickness - up to 1 mm Extended operating temperature range - -20 to 60 °C Overall dimensions: - 35x58 mm Cable length: - Up to 3.000 mm Weight - 215 g

VIDEO
