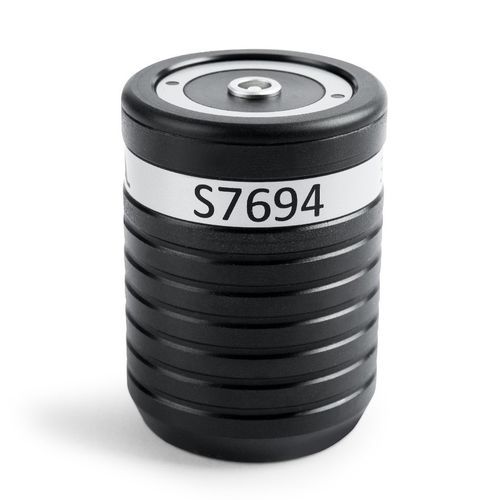

Cylindrical ultrasonic transducer S7694
electromagneticelectromagnetic acoustic (EMAT)direct-contact

cylindrical ultrasonic transducer
cylindrical ultrasonic transducer
cylindrical ultrasonic transducer
cylindrical ultrasonic transducer
Add to favorites
Compare this product


Characteristics

Configuration
cylindrical
Technology
electromagnetic acoustic (EMAT), electromagnetic
Use
direct-contact
Applications
shear wave
Frequency

3 MHz

Description

EMAT - electromagnetic-acoustic transducer for transmitting and receiving the shear-horizontal ultrasonic waves An electro-magnetic acoustic transducer S7694 for the couplant-free transmitting and receiving shear-horizontal ultrasonic waves can be used for thickness measurements by A1270 EMAT. The transducer can be driven by following ACS instruments: • A1270 EMAT Transducer type - EMAT Type of generated wave mode: - Shear wave, linear polarization Nominal frequency - 3 MHz Effective aperture diameter - 10 mm Inspection range - 1 to 200 mm Lift-off / through-coating thickness - up to 2 mm Extended operating temperature range - -20 to 60 °C Overall dimensions: - 35x58 mm Cable length: - Up to 3.000 mm Weight - 255 g
