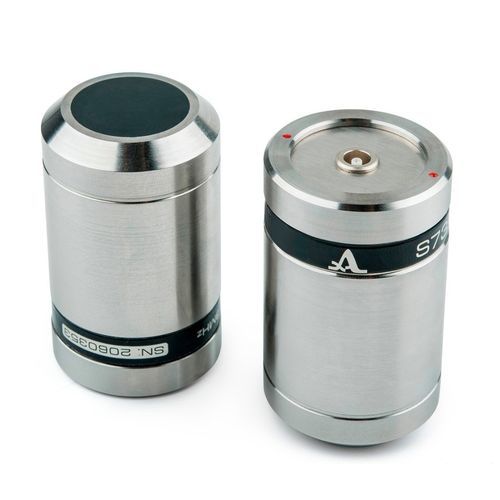

Cylindrical ultrasonic transducer S7394electromagneticelectromagnetic acoustic (EMAT)direct-contact
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Technology
- electromagnetic acoustic (EMAT), electromagnetic
- Use
- direct-contact
- Other characteristics
- high-temperature
- Applications
- shear wave
- Frequency
3 MHz
Description
EMAT - electromagnetic-acoustic transducer for transmitting and receiving the shear-horizontal ultrasonic waves suitable for high-temperature applications
An electro-magnetic acoustic transducer S7394 for the couplant-free transmitting and receiving shear-horizontal ultrasonic waves can be used for thickness measurements by A1270 EMAT.
The transducer can be driven by following ACS instruments:
• A1270 EMAT
Transducer type - EMAT
Type of generated wave mode: - Shear wave, linear polarization
Nominal frequency - 3 MHz
Effective aperture diameter - 10 mm
Inspection range - 1 to 200 mm
Lift-off / through-coating thickness - up to 2 mm
Extended operating temperature range - -20 to 800 °C
Overall dimensions: - 35x58 mm
Cable length: - Up to 3.000 mm
Weight - 255 g
