Gravity diverter valve
Add to favorites
Compare this product
Characteristics
- Type
- gravity
Description
Features & Benefits:

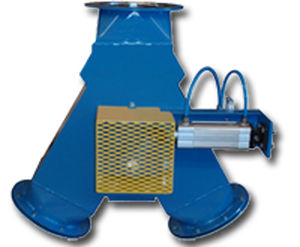

2-way, Y-style, gravity diverter valve provides automated control of bulk material flow direction; improves efficiency of material feeding and loading operations.
Available in 4 heights, from 16 5/16"H to 24"H, and 4 square-flange sizes from 6" to 12".
Available in 30-degree or 45-degree outlet angles.
10 ga. carbon steel housing construction; heavy-duty carbon steel flappers with neoprene seal strips and carbon steel seats.
Air control package includes solenoid, fittings, and tubing; pre-assembled and ready for start-up.
Excellent performance in high-temperature applications up to 500°F.
