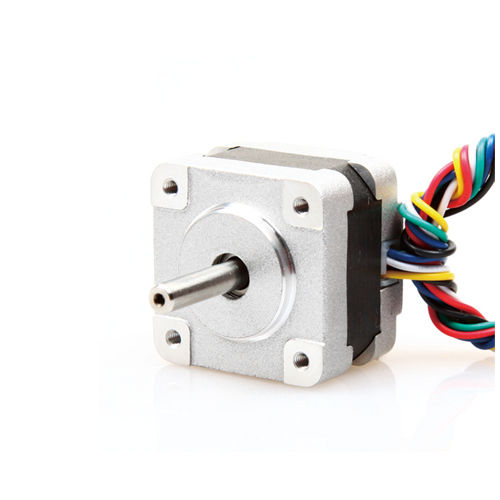

Two-phase motor 14HS series

hybrid stepper12 V

Short Description: Series Model Step Angle Motor Length Rated Voltage Rated Current Phase Resistance Phase Inductance Holding Torque Detent Torque Rotor Torque Lead Wires Motor Weight ( °) (mm) (V) (A) (Ω) (mH) (N.cm) (N.cm Max) (g.c㎡) (NO.) (g) 14HS1404 1.8 20 10.8 0.4 27 17 6.5 0.5 8 4 100 14HS1605 1.8 20 12 0.5 24 9 6 0.8 8 6 100 14HS1407 1.8 20 6.57 0.73 9 4 6 0.5 8 4 100 14HS0404 1.8 26 14 0.4 35 16 7 0.6 10 4 110 14HS0408 1.8 26 3.2 0.75 4.3 4 7 0.6 10 4 110 14HS2604 1.8 28 12 0.4... Step Accuracy---------------------------------±5% Temperature Rise----------------------------80℃ Max. Ambient Temperature Range---------- -20℃~+50℃ Insulation Resistance-----------100MΩ Min.50V DC Dielectric Strength-----------------500V AC 1minute
