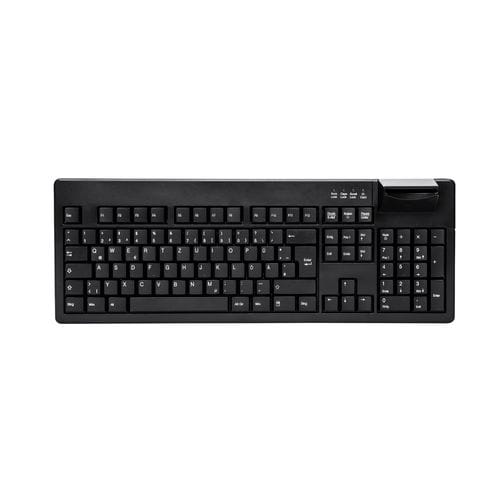

Desktop keyboard AK-8200S series

with mechanical keys105-key104-key

AK-8200S USB SMART CARD KEYBOARD The AK-8200S-U is a high performance, robust and highly reliable smart card reader keyboard with an excelling data trasnfer rate. It is designed for security relevant applications in office, healthcare, financial and public service environments. The integrated smart card reader is the ideal solution for applications in the field of access control and data encryption with digital signature and online payment methods. The Gemalto Chipset stands for the highest level of compatibility and reliability with the default drivers included in BIOS and operating systems. FEATURES Integrated PC/SC Smart Card Reader PC/SC compatible CCID compatible LED Indicator for Chipset Splash Water Resistant Key Field Gemalto Chipset CR 20 COMPATIBILITY All operating systems supporting standard USB keyboard INTERFACE USB 1.1 PC/SC, CCID TEMPERATURE RANGE Storage: -20° to +60° C Operation: 0° to +50° C SUPPLY VOLTAGE 5V +/-10% through USB port (Low Power Device) CURRENT CONSUMPTION Appr. 106mA (USB Low Power Device) DIMENSIONS 452 mm x 164 mm x 63 mm WEIGHT appr. 920g SMART CARD READER Operation Cycles: appr. 100.000 Reader to Smart Card: Up to 826kbit/s Standards: Class A (1,8V), B (3V), C(5V), ISO 7816-1,2,3,4 T=0 & T=1
