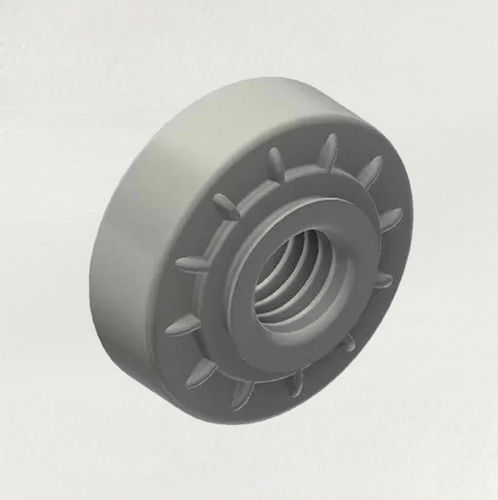

Cylindrical nut Strux SM™

metalmetalaluminum

SUPERIOR SOFT METAL CLINCH SOLUTION Strux SM™ is our next generation of clinch product designed for soft metal, offering a stronger and more reliable assembly alternative to traditional clinch nuts into the same material. Using an identical hole size and installation method to that of Strux®, Strux SM™ offers the ultimate performance in soft metal. FEATURES ► New rib profile equally spaced around the body ► Prevents rotation after being staked into sheet material ► Displacement Collar ► Displaces sheet material into retaining groove ► Retaining Groove ► Retaining Ring ► Barrier for displaced material to prevent pushout BENEFITS ► Significantly higher torsional resistance in aluminum vs. current competing clinch product ► Each thread size has a single design for reduced product complexity ► Minimalized panel distortion from installation ► Fasteners may be installed close together with less panel distortion than current competing clinch product ► Consistent performance ► Fast and easy installation – can be installed in-die or using automated equipment ► Low-cost, long-life installation tooling compared to competitors ► May be installed into difficult-to-weld materials ► Clinch feature seals against fluids without the need for expensive chemical sealants between the nut and mating material
