Digital I/O card CPCI-1564

32 digital outputs32 digital inputs64-I/O

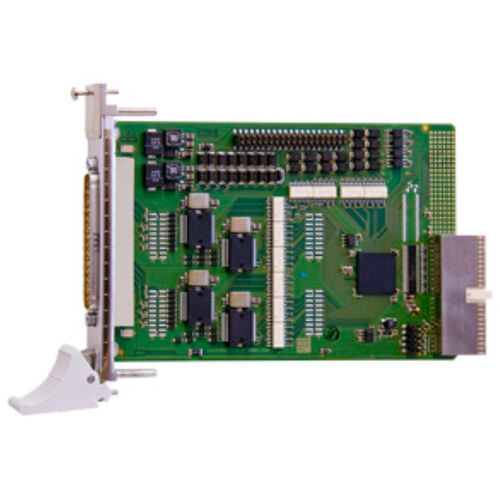

The CompactPCI 3,3V 64 digital I/O board CPCI-1564 has 32 digital inputs, 24 V, and 32 digital outputs, 24 V. 16 inputs are interruptible. The board is especially suited for applications like I/O control, ON/OFF monitoring of motors, lights, etc. in the harsh industrial environment. The 32 outputs (11-36 V) have an output current of 500 mA per channel and are reset to “0” at Power-on. The board is optically isolated up to 1000 V. Features Inputs organised in 4 groups of 8 channels, each group has its own ground line Reverse voltage protection All inputs are filtered Output current per channel 500 mA Watchdog for resetting the outputs to “0“ At Power-On, the outputs are reset to “0“ Total current for 8 outputs 1.85 A Short-circuit current per output max. 1.7 A Electronic fuse Overtemperature and overvoltage protection 24 V power outputs with protection diodes and filters Ext. 24 V voltage supply screened and filtered Shutdown logic, when the external supply voltage drops below 7 V Safety features Optical isolation 1000 V Creeping distance IEC 61010-1 Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI Interrupt started through counter, timer Separate ground line for inputs and outputs
