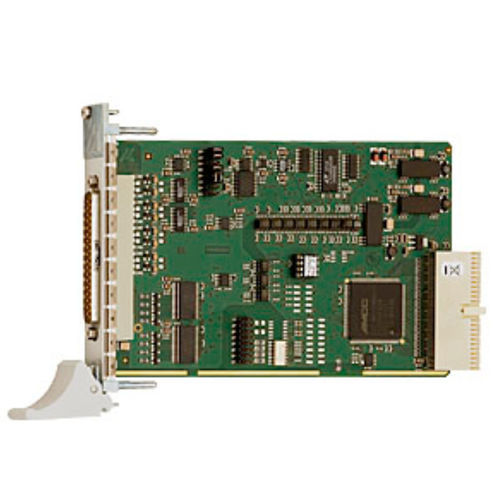

Analog input card CPCI-3001

CompactPCIPXIprogrammable

The CompactPCI analog input board CPCI-3001 has 16/8/4 SE or 8/4 differential inputs, 12 bit, with a throughput rate of 100 kHz. Futhermore, it has 8 digital I/O and 2 timers. The board is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data etc. Features Can be inserted in PXI systems, with restricted functionality Monitoring program for testing and setting the board functions Analog inputs: 16 single-ended/8 differential inputs or 8 single-ended/4 differential inputs or 4 single-ended inputs 12-bit resolution Throughput: 100 kHz Input voltage: 0-10 V, ± 10 V, 0-5 V, ± 5 V, 0-2 V, ± 2 V, 0-1 V, ±1 V, 0-20 mA (option) freely programmable through software for each channel Gain PGA x1, x2, x5, x10 freely programmable through software for each channel PCI DMA for analog data acquisition Analog acquisition: One single channel, several channels, several channels through scan list Automatic analog acquisition through cyclic timer control Acquisition through scan list: up to 16 entries with gain, channel, unipolar/bipolar Acquisition triggered through software, timer, external event Trigger functions: Software trigger or external trigger: the analog acquisition (single or sequence) is started through signal switching from 0 V to 24 V at the digital input 0. Interrupt: end of single channel, end of multichannel, end of scan list
