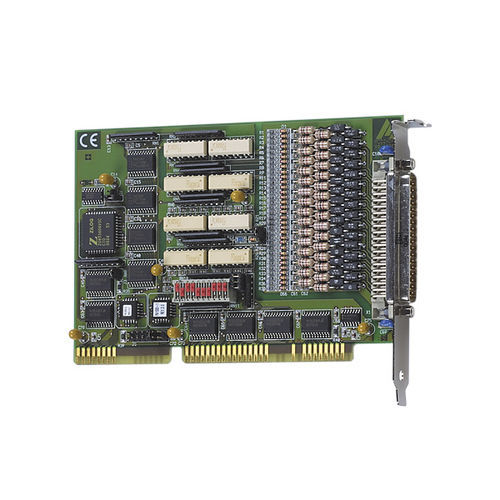

Digital input card PA 1000

32 digital inputsISAsafety

The PA-1000 32 digital input ISA card has 32 digital inputs, 24 V, 14 of which are interruptible. All entries are filtered. 1 channel can be used for monitoring the 24 V supply voltage. The address is configured by DIP switch. The card has been specially designed for digital monitoring applications such as signal switching and as an interface to machinery. A CD-ROM containing drivers for Windows and programming examples is included. Features 32 isolated input channels, 24 V, incl. 14 interruptible 1 channel can be dedicated to the monitoring of the 24 V supply voltage (channel 16) Address range adjustable through DIP switches 16-bit or 8-bit data bus access Safety features Optical isolation 1000 V Voltage reversal protection Creeping distance IEC 61010-1 (VDE411-1) All inputs are filtered Protection against fast transients (Burst), overvoltage, electrostatic discharge and high-frequency EMI Additional noise suppression on the interrupt lines EMC tested according to 89/336/EEC (CE certification) IEC 61326: electrical equipment for measurement, control and laboratory use
