PCI Express data acquisition card APCIe-3126
analogdigital16-bit

PCI Express data acquisition card
PCI Express data acquisition card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Input/output signal
analog, digital
Other characteristics
16-bit

Description

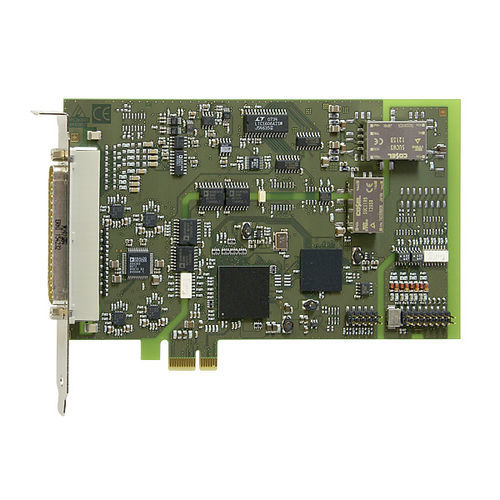

The PCI-Express analog I/O card APCIe-3126 has 16 SE inputs with an acquisition frequency of 200 kHz, 8 analog outputs, 16-bit, 8 isolated digital I/O, 24 V and additional 24 TTL I/O. The card is especially suited for applications in industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data, current measurement etc. in the harsh industrial environment. Analog inputs Optical isolation: 500 V Throughput rate: 200 kHz Input range: 0-10 V, ± 10 V, 0-5 V, ± 5 V, 0-2 V, ± 2 V, 0-1 V, ± 1 V, 0-20 mA (option); freely programmable for each channel through software Gain: PGA x1, x2, x5, x10; freely programmable for each channel through software PCI Express DMA for analog data acquisition Overvoltage protection Input filters: 159 kHz Analog acquisition Single channel, multi-channel, multi-channel through sequence list Automatic analog acquisition through cyclic timer control Acquisition through sequence list: up to 16 entries with gain, channel, unipolar/bipolar Acquisition triggered through software, timer, external event Trigger functions: Software trigger or external trigger: the analog acquisition (single or sequence) is started through signal switching from 0 V to 24 V at the digital input 0. Interrupt: end of single channel, end of multichannel, end of scan list Analog outputs Voltage outputs Output range: ± 10 V, 0-10 V (switchable through software) Output voltage after reset: 0 V Each output has its own ground line (without optical isolation) Output current ± 5 mA max. for voltage outputs EMI filters
