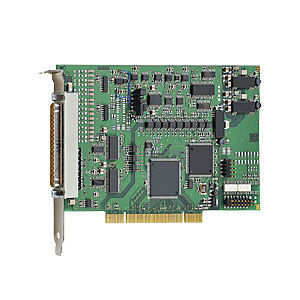

Analog input card APCI-3001

serial8 digital inputs8 digital outputs

The PCI analog input card APCI-3001 has 16/8/4 SE or 8/4 differential inputs, 12-bit, and 8 digital I/O, 24 V. The card is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data etc. in the harsh industrial environment. Analog inputs Throughput: 100 kHz Input voltage: 0-10 V, ±10 V, 0-5 V, ±5 V, 0-2 V, ±2 V, 0-1 V, ±1 V, 0-20 mA (option), freely programmable through software for each channel Gain PGA x1, x2, x5, x10 freely programmable through software for each channel PCI-DMA for analog data acquisition Analog acquisition Single channel, several channels, several channels through scan list Automatic analog acquisition through cyclic timer control Acquisition through scan list: up to 16 entries with gain, channel, unipolar/bipolar Acquisition triggered through software, timer, external event Trigger functions: – Software trigger or – External trigger: the analog acquisition (single or scan) is started through signal switching from 0 V Interrupt: End of single channel, end of multichannel, end of scan list Digital Safety features Optical isolation 500 V min Creeping distance IEC 61010-1 Overvoltage protection ± 40 V Protection against high-frequency EMI Input filters: 159 kHz Noise neutralisation of the PC supply Applications Industrial process control Industrial measurement and monitoring Multichannel data acquisition Control of chemical processes
