Analog input card APCI-3010

TTL8-I/OPCI

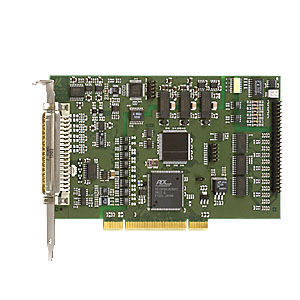

The PCI analog input cards APCI-3010 have 16 SE or 8 differential inputs, 12 bit, and 200 kHz throughput. Furthermore, the card is equipped with timer/counter, watchdog and 8 digital I/O, 24 V as well as 24 TTL I/O. It is available in 2 versions: APCI-3010 (12 bit resolution) and APCI-3016 (16-bit resolution).The board is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for multichannel data acquisition, for the control of chemical processes, for the acquisition of sensor data, current measurement etc. in the harsh industrial environment. Features PCI 3.3 V or 5 V Throughput: 200 kHz Voltage inputs: 0-10 V, ±10 V, 0-5 V, ±5 V, 0-2 V, ±2 V, 0-1 V, ±1 V, freely programmable through software for each channel Current inputs: 0-20 mA (option) can be combined freely with voltage inputs Gain PGA x1, x2, x5, x10 freely programmable through software for each channel Analog acquisition Different input modes: 1) Simple mode 2) Scan modes 3) Sequence modes 4) Auto Refresh mode Trigger functions: – Software trigger or – external trigger: the analog acquisition (single or sequence) is started through the signal on digital input 0 from 0 V to 24 V Onboard FIFO (for 512 Analog values) PCI-DMA for analog data acquisition Port1: inputs / Port2: outputs / Port3: I/O All I/O are at 5 V through pull-up resistors Easy programming through I/O read and write commands Timer/Counter Safety features Industrial process control
