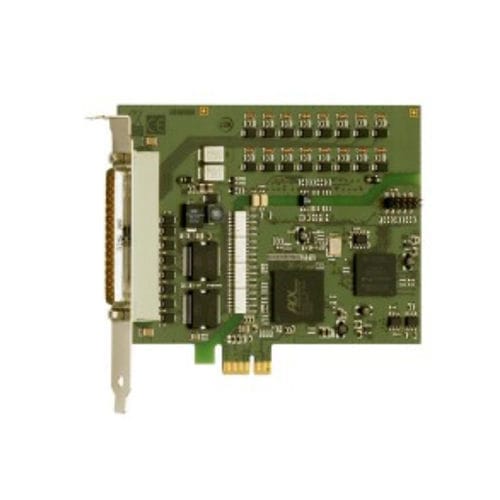

PCI Express data acquisition card APCIe-1532-12

digital12-bit16-bit

The PCI-Express 32 digital I/O card APCIe-1532-12 V has 32 digital inputs and outputs. The card is available as 12 V version. It is especially suited for the industrial I/O control, for example for signal switching, ON/OFF monitoring of motors, lights, etc., as interface to electromechanical relays, for automated test devices or as interface to machines in the harsh industrial environment. Features Inputs 16 optically isolated inputs, 12 V incl. 15 interruptible inputs Channel 0 can be used as a 16-bit counter input (up to 100 kHz) Reverse voltage protection All inputs are filtered Outputs: 16 optically isolated outputs, 11 to 36 V Output current per channel 500 mA Total current: 3 A typ. (fused through PTC resistor) Watchdog for resetting the outputs to”0“ At Power-On, reset of the outputs to “0” Current limit: ~ 1.5 A per 8 channels (through PTC) Short-circuit current per output ~1.5 A typ. Self-resetting fuse (electronic fuse) Overtemperature and overvoltage protection 24 V power outputs with protection diodes and filters External 24 V voltage supply screened and filtered Shutdown logic, when the external supply voltage drops below 7 V Timer / Counter 2 timers (12-bit resolution) 1 timer can be used as watchdog 1 counter Safety features Optical isolation 1000 V Creeping distance IEC 61010-1 Separate ground line for inputs and outputs Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI Applications Industrial I/O control PLC coupling Reading of encoder values for process control Signal switching Interface to electromechanical relays ON/OFF monitoring of motors, lights… Watchdog timer Interface to machines
