PCI Express data acquisition card APCIe-1564-5V-HS
digital12-bit

PCI Express data acquisition card
PCI Express data acquisition card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Input/output signal
digital
Other characteristics
12-bit

Description

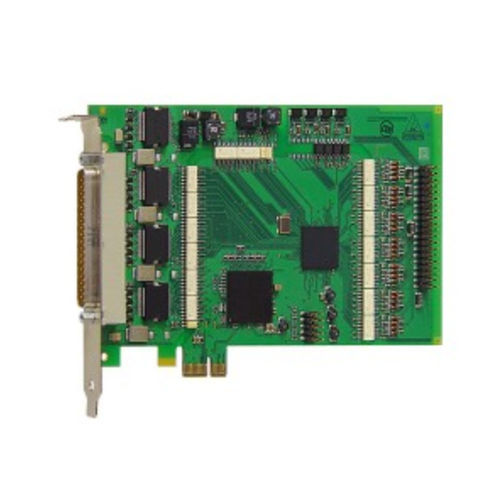

The PCI-Express 64 digital I/O card 5V APCIe-1564-5V-HS has 64 digital inputs/outputs, 5 V. with High-Side outputs. The card is especially suited for applications like signal switching, ON/OFF monitoring of motors, lights etc., as interface to electromechanical relays, for automated test devices or as interface to machines in harsh industrial environment. Description Features Inputs: 32 optically isolated inputs, 5 V, incl. 16 interruptible inputs Channels 0–2 can be used as 32-bit counter inputs (up to 500 kHz) Reverse voltage protection All inputs are filtered Outputs: 32 optically isolated outputs, 5 V High-Side outputs Output current per channel 50 mA Total current: 3 A typ. (fused through PTC resistor) Watchdog for resetting the outputs to”0“ At Power-On, reset of the outputs to “0” Current limit: ~ 1.5 A per 8 channels (through PTC) Short-circuit current per output ~1.5 A typ. Self-resetting fuse (electronic fuse) Overtemperature and overvoltage protection External 24 V voltage supply screened and filtered Timer / Counter 2 timers (12-bit), of which one can be used as a watchdog 3 counter (32-bit) Safety features Optical isolation 1000 V Creeping distance IEC 61010-1 Separate ground line for inputs and outputs Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI Applications Industrial I/O control PLC coupling Signal switching Interface to electromechanical relays Automatic test equipment ON/OFF monitoring of motors, lights… Watchdog timer Software A CD-ROM with the following software and programming samples is supplied with the board. Linux 32-bit drivers for Windows 8 / 7 / Vista / XP / 2000
