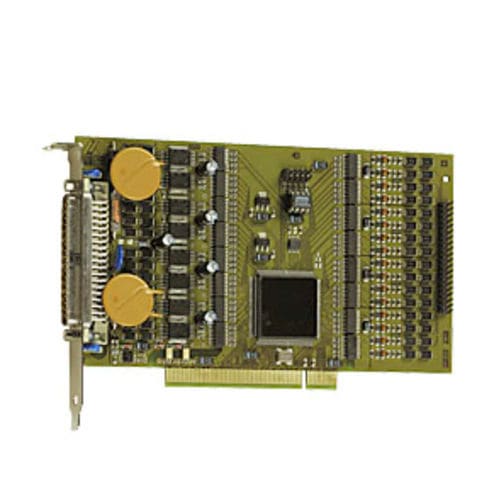

PCI data acquisition card APCI-1564-5

digitalcontrol

The PCI 64 digital I/O card 5V APCI-1564-5V has 32 digital inputs, 5 V, and 32 digital outputs, 5 V. 16 inputs are interruptible. The card is available in 2 versions: with open collector outputs (APCI-1564-5V) or with high side outputs (APCI-1564-5V-HS). The card is especially suited for I/O control, signal switching, PLC coupling, as interface to machines or electromechanical relays, etc. in the harsh industrial environment and thus is equipped with many protective circuits. Description Features 32-bit, 33 MHz, PCI interface PCI 5 V Inputs 32 optically isolated digital inputs, 24 V, including 16 interruptible and 3 counter inputs Inputs organised in 4 groups of 8 channels, each group has its own ground line Reverse voltage protection All inputs are filtered Outputs 32 optically isolated digital outputs, 5 V Open Collector outputs Output current per channel 50 mA Watchdog for resetting the outputs to “0“ At Power-On, reset of the outputs to „0” Total current for 8 outputs ~ 0.5 A (via PTC) Electronic fuse Short-circuit current per output ~1.5 A Overtemperature and overvoltage protection 24 V power outputs with protection diodes and filters Output capacitors against electromagnetic emissions External 24 V voltage supply screened and filtered Shutdown logic, when the external supply voltage drops below 5 V Safety features Optical isolation 1000 V Creeping distance IEC 61010-1 Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI Interrupt started through counter, timer Separate ground lines for inputs and outputs Applications Industrial I/O control PLC coupling Signal switching
