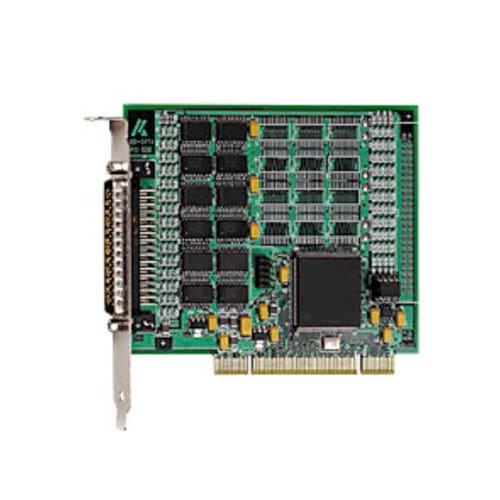

PCI data acquisition card APCI-1648

digitalcontrol

The PCI TTL I/O cards APCI-1648 have 48 digital TTL I/O. 8 lines (1 port) can be configured as inputs or outputs. The programming is made through I/O read-/write commands. The card are suitable for applications in measurement, control, regulation and laboratory technology. Description Features PCI 3.3 V or 5 V 48 digital TTL inputs/outputs Each group of 8 lines (1 port) can be configured as input or output. All I/Os are led to 5 V over pull-up resistors. Easy programming through I/O read/write commands Connection 50-pin D-Sub male connector Software Drivers and samples A CD containing standard drivers as well as programming samples (source code or compiled) for different programming environments is supplied with the board. This software can also be downloaded for free from our website (www.addi-data.com/downloads). Software for other operating systems and programming environments is available on request. ADDIPACK functions: Digital input • Digital output • Watchdog Timer • Counter
