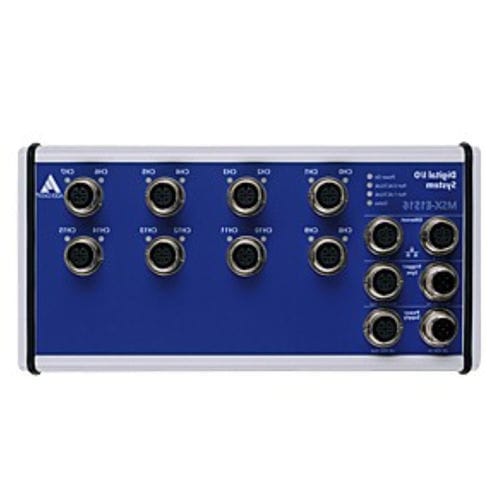

Digital I O module MSX-E1516

Ethernet16 digital inputs16 digital outputs

The Ethernet system with 16 digital I/O MSX-E1516 has 16 digital inputs/outputs with status LEDs, 24 V, and 1 digital 24 V trigger input. The inputs and outputs can be parameterised as paris of inputs our outputs and have an event logic. The system was especially developed for the direct acquisition and calculation of I/O signals close to the test object in the harsh industrial environment and has a robust normed metal housing with the degree of protection IP 65. It has an extended temperature range from -40°C to +85°C. The ARM®9 32-bit processor allows the calculation of the acquired values. The Development Mode allows to customise applications individually. Through synchro connection, several MSX-E systems can be cascaed and synchronised with one another in the µs range. The system is also available as MSX-E1516-NPN version. Features 24 V digital trigger input ARM®9 32-bit processor 64 MB onboard SDRAM for storing data Robust standardized metal housing Power Save Mode: Reduced power consumption when no acquisition runs Digital I/O 8 x 2 digital lines, 24 V, which can be parameterised as pairs of inputs or outputs Shutdown logic Watchdog for resetting the outputs to “0“ At Power-On the outputs are set to ”0“ Electronic fuse Dual LED for each 24 V digital I/O with direction indication Safety features Status LEDs for fast error diagnostics Optical isolation 1000 V Overtemperature and reverse voltage protection Internal temperature monitoring Filters on all inputs (software-programmable) Short-circuit protection Overvoltage protection 30 V Electronic fuse
