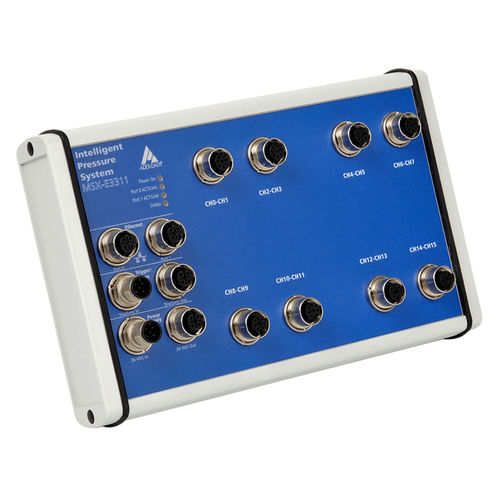

Digital I O module MSX-E3311

analogEthernetsafety

The Ethernet system for pressure measurement MSX-E3311 has 16/8 differential inputs, 24 bit, for the connection of straing gauges and a digital trigger input, 24 V. Up to 8 channels can be acquired simultaneously. The system was developped for the acquisition of pressure and force directly at the sensor in the harsh industrial environment. It has a robust normed metal housing with the degree of protection IP 65 and an extended temperature range from -40°C to +85°C. The ARM®9 32-bit processor allows the calculation of the acquired values. The Development Mode allows to customise applications individually. Through synchro connection, several MSX-E systems can be daisy-chained and synchronised with one another in the µs range. Features 24 V digital trigger input ARM®9 32-bit processor 64 MB onboard SDRAM for storing data Robust standardized metal housing Power Save Mode: Reduced power consumption when no acquisition runs Inputs for strain gauges 16/8 differential inputs for strain gauges, 24-bit Sampling frequency max. 788 Hz/channel (max. 8/4 channels simultaneously) Auto gain: Optimal adjustment of the gain to the measuring range Integrated sensor supply: 10 V, 50 mA (5 V optional) Safety features Status LEDs for fast error diagnostics Optical isolation Input filters
