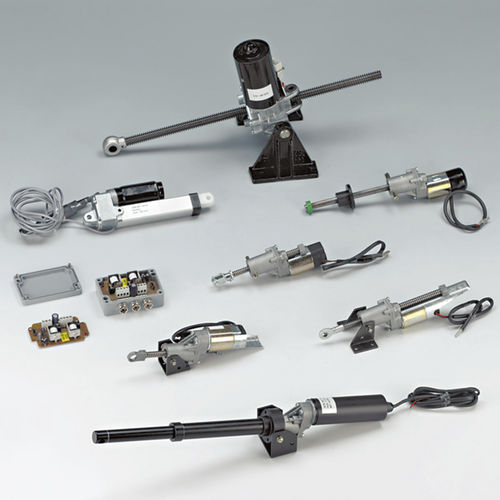

Mini actuator MT series

linearelectricscrew

Drive unit with direct current gear motor for easy movement with a low power-on time. Duty rating, max. 20% performance with rotating trapezoid threaded drive screw (type "d") or with stationary trapezoid threaded drive screw (type "s"). Various sizes for different operation cases: Mini Lift Gear MT-10-d 12 Volts or 24 Volts closed design max. 120 daN - Mini Lift Gear MT-10-s 12 Volts or 24 Volts open design max. 120 daN - Mini Lift Gear MT-16-d 0-48 Volts closed design max. 1000 daN - Mini Lift Gear MT-16-s 0-48 Volts open design max. 1000 daN Numerous accessories and special designs complete the delivery program: - Electronic limit switches for MT-10-d; MT-10-s, MT-16-d, MT-16-s - Electronic shut down in case of overload and at the end position - Housing for electronic limit switch is without a control panel - For direct current 12 volts or 24 volts - With a transformer for alternating current 230 volts Ancillary equipment for MT-10-d; MT-10-s, - Swivel bracket - Pedestal bearing Ancillary equipment for MT-16-d and MT-16-s - Pedestal bearing MT-30301 - Bearing pin MT-30302 - Pivot bearings MT-30303
