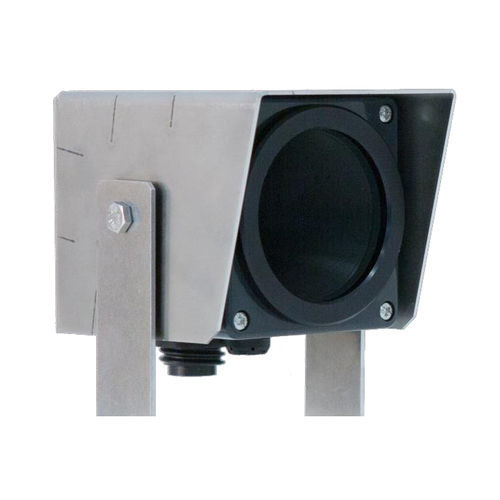

Ultrasonic traffic detector TDC2-PIRUS

PIRwith relay outputRS-485

The TDC2 Series are advanced traffic detectors using Passive Infrared (PIR) and Ultrasonic (US) technology. Vehicle events (count) and distance (height) are provided via RS 485 databus, additional true-presence is available via dry contact / relay output. The device can toggle the output for objects at a specific distance range, ignoring objects closer or further away. Valid range is 0.5 – 10 m (1.7 – 33 ft.). Features: True-presence detection Detection of standing vehicles and objects Vehicle discrimination by height Distinguish cars from trucks and busses Dual-sensor detection Responsive action combined with true presence detection Auto calibration Auto calibration using distance / height thresholds via dedicated commissioning software Wide mounting height range Detection range up to 10 m (33 ft.) Application-specific restrictions apply Wide operating-temperature range -30 to +65°C (-22 to +149°F) Optimal performance in all weather and climate conditions Remote configuration and setup With software specifically designed for TDC2 commissioning via RS 485 Applications The TDC2 detector is specifically designed for a variety of traffic data collection and traffic control applications where true presence detection are required: Vehicle counting (volume) Traffic light control, green light request Object / vehicle true presence detection Vehicle discrimination by height
