ATX motherboard MS-98A9

Intel® Celeron®Intel® PentiumIntel® Core i3

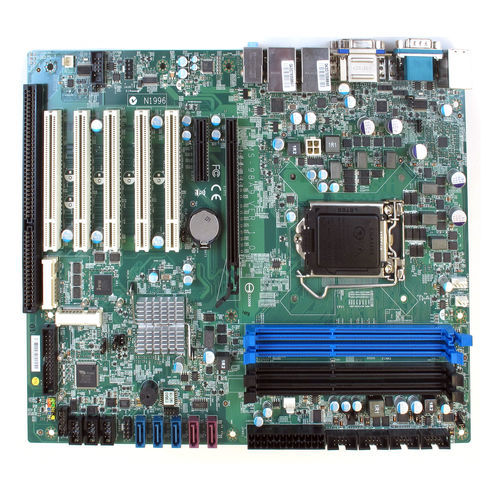

The MS-98A9 industrial motherboard is a long-life ATX motherboard with FIVE 32-bit PCI slots, 1 ISA slot, and 1 each PCIe x16 and PCIe x4 slots. This motherboard is based on the Ivy Bridge architecture, accepting Generation 3 LGA 1155 Intel processors. The well-established Intel Q77 Express chipset allows for features such as Intel Rapid Storage Technology and Intel vPro. On-Board VGA, DVI-D, HD Audio, Serial ATA, Dual LANs The MS-98A9 industrial motherboard has multiple on-board features commonly sought after on an industrial board. VGA and DVI-D to take advantage of Intel HD graphics, HD audio, and dual gigabit LANs are all incorporated right on the rear panel. Supports Generation 3 Core i3, i5 & i7 Processors Intel Q77 Chipset 4 x DDR3 1600 MHz Memory Sockets up to 32 GB RAM Dual Video, VGA AND DVI-D ports 5 SATA Controllers (2 x SATA 3, 3 x SATA 2) On-board RAID 0, 1, 5, 10 Dual Gigibit LANs 4 x USB 3.0 (rear), 8 x USB 2.0 (2 rear, 6 via pin headers) 1 x PCIe x16, 1 x PCIe x4, 5 x PCI slots, 1 x ISA slot (No DMA support for ISA) 6 x COM Ports (5 x RS-232, 1 x RS232/422/485), 1 x LPT, PS/2
