PICMG SBC IB-820H

Intel® Celeron®Intel® Pentium® 4RS232

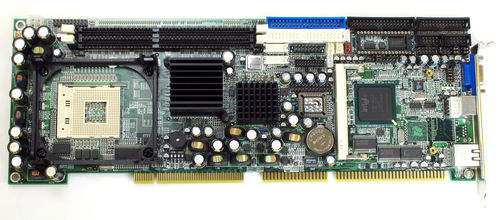

The IB-820H PICMG 1.0 single board computer is based on the Intel 845GV chipset. The platform supports Socket 478 Pentium 4 / Celeron processors, and supports up to 2GB of DDR memory. Integrated Intel graphics provide display capabilities via the on-board VGA connector. Edge connectors include VGA, fast ethernet LAN, and a PS/2 keyboard and mouse connector. Two IDE ports and one FDD port are available. There is an available DiskOnChip slot. Two serial ports and a parallel port are supported. CPU Socket Type - Socket 478 Chipset - Intel 845GV Number of Memory Slots - 2x184pin Memory Standard - 266 / 200 DDR (non-ECC) IDE - 2 FDD - 1 DiskOnChip - 1 Graphic Controller - Intel 82845G VGA - 1 Ethernet Controller - ICH4 Integrated FE LAN USB 2.0 - 6x internal PS/2 - 1x Keyboard/Mouse Serial - 2x COM (COM1-2 internal) Serial Types - COM1 (RS-232 0V/5V/12V), COM2 (RS-232/422/485 0V/5V/12V) Parallel - 1 (pin header) IrDA - 1 Watchdog Timer - 255-level Super I/O Controller - Winbond 83627HF Power Supply - 12V 4-pin, PICMG 1.0 Operating Temperature - 0-60 C Operating Humidity - 10-90% non-condensing Storage Temperature - -20-85 C Storage Humidity - 10-90% non-condensing Height (mm) - 122 Length (mm) - 338
