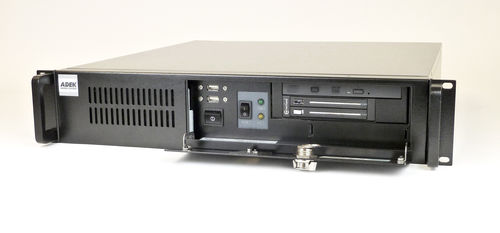

Rack-mount PC chassis AD-291

2Ucompact6 slots

SKU: AD-291GET A QUOTE The AD-291 2U industrial rack mount computer may be only 2U high, but it incorporates 6-slots enabling the AD-291 to accept a variety of single board computers and other PCI/ISA cards. The locking front door protects both floppy and CD-ROM drives in harsh environments, while the built-in fan keeps things cool. The design of the AD-291 allows for horizontal installation of full-size single board computers and room for add-on cards. Its an excellent choice when you need a compact computer that's big on performance and convenience. Features 2U chassis height Accepts up to 6-slot backplanes External bays: 1 x 3.5", 1 x 5.25″ Internal bays: 1 x 3.5" Removable "wings" for rack or desktop operation Front door protects disk drives Front panel supports keylock and power switch, reset button & dual USB Dual ball-bearing fans with filters keep things cool Supports PS/2 power supplies Shock: 10 G acceleration peak to peak (11 ms) Vibration: 5~17Hz, 0.1" double amplitude displacement; 17~640Hz, 1.5 G acceleration peak to peak Dimensions: 18.9" W x 3.4" H x 17.1" D
