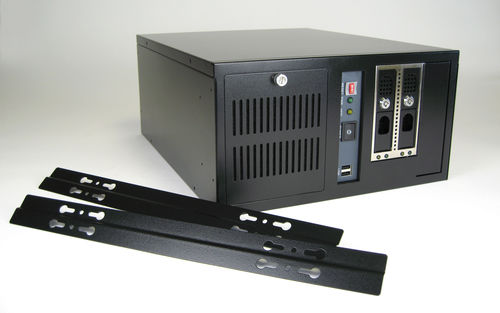

Wall-mounted PC chassis AD-608-10

compactbackplaneindustrial

For use with a 10-slot backplane, the AD-608-10 industrial computer is a compact system ideal for applications where small size is important. It accepts a standard size power supply capable of delivering power for the most demanding applications. Our 10-slot chassis provides exceptional expansion capability for full length add-on cards. These systems are designed for industrial environments with their superior cooling and a removable and washable air filter. Features Accepts full length add-on cards Wall/panel mountable or table top use External bays: 2 x 3.5", 1 x 5.25" Large 120 mm fan with washable filter for exceptional cooling even in dusty industrial environments Accepts standard PS2 size power supply for costeffectiveness and flexible power requirements Hold-down bracket keeps internal boards secure Two front-mounted USB ports (expandable in rear) Front Panel: Power switch, reset switch, LEDs for Power On/Off and HDD activity Dimensions: 13" x 6.9" x 16.2" D Weight: 15.4 lbs, case only
