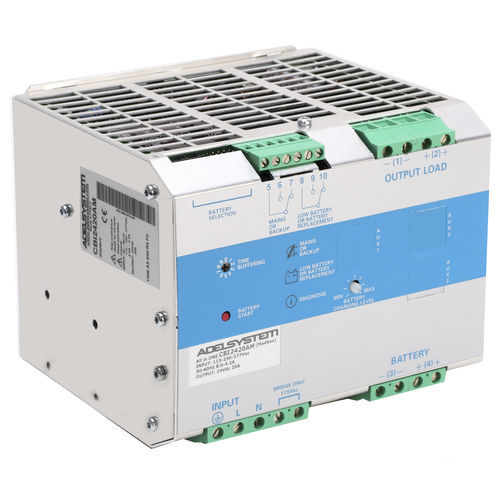

All-in-one UPS CBI2420Asingle-phaseDCVRLA
Add to favorites
Compare this product
Characteristics
- Type
- all-in-one
- Electrical characteristics
- single-phase, DC
- Type of energy storage
- VRLA, lead-acid, AGM, lead-acid gel, Li-ion, LiFePO4, Ni-Cd
- Other characteristics
- with AC input
- Applications
- power distribution, industrial, data center, network, for telecom applications, for emergency lighting, for electronics, for CCTV cameras, for generators, for CATV applications, for military applications, for railway
- Configuration
- DIN rail
- Certifications
- CE, ISO, RoHS
- Output power kVA
600 W
(0.815773 hp)- Input voltage
115 V, 230 V, 277 V
Max.: 305 V
Min.: 90 V
- Output voltage
24 V
Max.: 28.8 V
Min.: 22 V
- Power
600 W
Description
Adelsystem DC-UPS “All In One” combines in one module the functionality of:
- - Power Supply
- - Backup Module
- - Battery Charger
- - Battery Tester
Thanks to the Battery Care technology, Adelsystem DC-UPS can charge every kind of battery technology using a specific charging profile:
- - Lead Acid, AGM, GEL;
- - Lead Crystal;
- - Lithium, LiFePO4;
- - NiCd, Nimh.
The Battery Care technology tests continuously the battery condition reporting the State of Health (SOH) of the battery.
It is possible to receive an alarm of bad battery condition before a real battery failure.
Adelsystem is highly specialized in remote monitoring solutions. DC-UPS line has the MODBUS RTU RS485 protocol communication, over 100 parameters about the DC-UPS and batteries condition.
Monitor, receive alarms, configure, and log data 24/7.
It is possible to monitor each power backup station in the territory from the control center room.
Catalogs
CBI2420A
1 Pages
