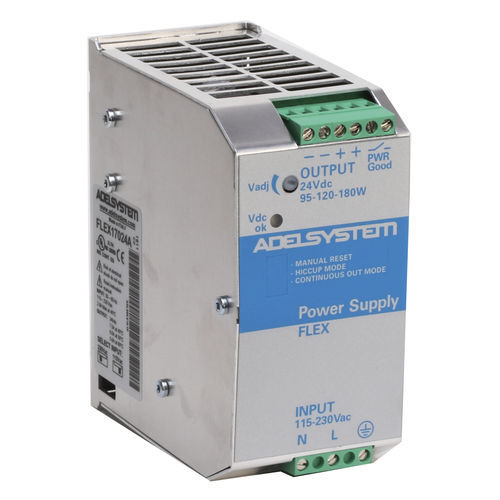

AC/DC power supply FLEX17024B
single-outputstabilizedadjustable

AC/DC power supply - FLEX17024B - ADELSYSTEM - single-output / stabilized / adjustable
AC/DC power supply - FLEX17024B - ADELSYSTEM - single-output / stabilized / adjustable
Add to favorites
Compare this product

Go to the ADELSYSTEM website for more information

Characteristics

Type
AC/DC
Output
single-output, stabilized, adjustable
Technology
switching
Network
two-phase, 3-phase
Protection
with short-circuit protection, with overcurrent protection, with overload protection, with overheating protection
Connection
with screw terminal block
Mounting
DIN rail
Certifications
CE
Features
closed frame
Applications
for industrial applications, for telecommunications equipment, for automation, for LED lighting, electronic equipment, for telecom applications, for remote control, for railway applications, Power-over-Ethernet, for access control
Input voltage

230 V, 400 V, 500 V

Min.: 187 V

Max.: 770 V

Output voltage

24 V

Min.: 22 V

Max.: 27 V

Current

7.5 A

Power

Min.: 120 W

Max.: 180 W

Output frequency

Min.: 47 Hz

Max.: 63 Hz

Description

The FLEX range of products offers 1, 2, and 3-phase input up to 500W with a current rating ranging to 25A and power flexibility that reaches 50% of the rated current In. The declared ambient temperature operations field starts from -25 up to 70°C. Three short-circuit overload protections (Hiccup Mode, Fold Back e Restart after Main), the small sizes of the units, and the appliance to the EN 60204-1 Safety of Electrical Equipment Machines change the way to supply power to the control panel. Besides the 1-phase 115-230Vac, we offer the 2-phase 230-500Vac units, which allow the use and storage of only one product.

Catalogs

FLEX17024B
FLEX17024B
1 Pages
