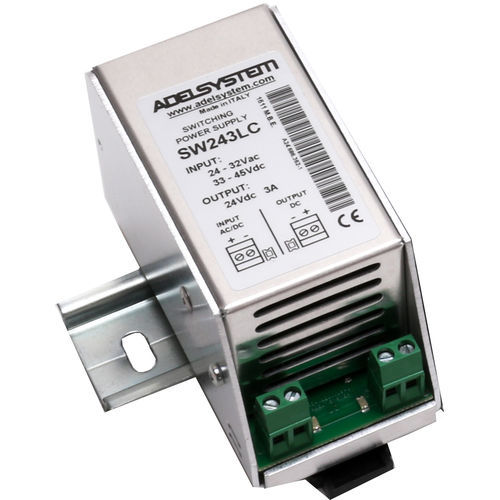

AC/DC power supply SW243LC
DC/DCsingle-outputstabilized

AC/DC power supply - SW243LC - ADELSYSTEM - DC/DC / single-output / stabilized
AC/DC power supply - SW243LC - ADELSYSTEM - DC/DC / single-output / stabilized
Add to favorites
Compare this product

Go to the ADELSYSTEM website for more information

Characteristics

Type
AC/DC, DC/DC
Output
single-output, stabilized, constant-current
Protection
with short-circuit protection, with overload protection
Connection
with screw terminal block
Mounting
DIN rail
Certifications
CE, ISO
Features
closed frame
Applications
for industrial applications, for telecommunications equipment, for automation, for telecom applications, Power-over-Ethernet
Input voltage

28 V, 40 V

Min.: 28.02 V

Max.: 45 V

Output voltage

24 V

Current

3 A

Power

72 W

Output frequency

Min.: 47 Hz

Max.: 63 Hz

Description

The SW range comprises single-output power supply units with an excellent price-performance ratio. Very small in size, these power supplies are 90% efficient. All models have short circuit and overload protection. They do not require any form of regulation. Main features: Input rated voltage: 24 Vac, 24 Vdc, 48 Vdc Output: 5 - 12 - 24 Vdc Output In: 3 - 5 - 7 A Non-adjustable output Extremely compact dimensions Ambient temperature operation field: 0 - 50° C
