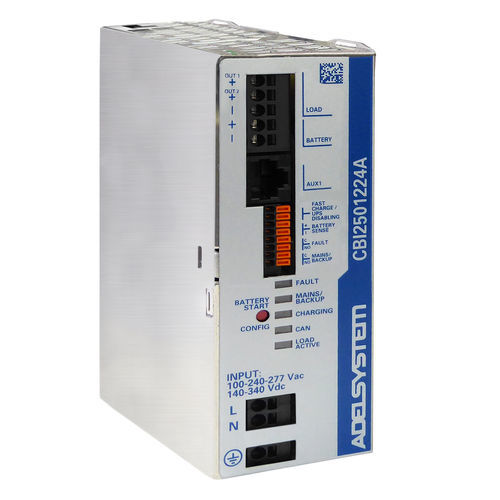

All-in-one UPS CBI2501224A

single-phase24 V12 V

The new CBI2501224A has an ultra-compact design, only 50mm wide, minimising the space required inside the cabinet. The module is a selectable dual voltage 12V and 24V with 10A current. The new DC-UPS unit has wide input voltage range: 100 – 240 – 277VAC and 140 - 340VDC. Direct plug connectors with “push in” technology reduce connection times, increasing installation efficiency without compromising safety. Configuration of the device is possible via push button, avoiding the use of jumpers. The CBI2501224A use switching technology with microcontrollers and optimize the loading and unloading times of the accumulator without a deep discharge, the switching from the battery to the charger without any interruption, automatic protection without fuse against the reserve polarity, short circuit and overload and overvoltage. The CBI2501224A has different charging profile for Lead Acid, AGM, GEL, NiCd, NiMh, Li-Ion and LiFePO4 battery technologies. The Modbus RTU RS485 protocol is integrated into the device, offering the possibility to remotely monitor power parameters and battery health. The unit is equipped with two load outputs, providing the opportunity of connecting two different loads directly to the DC-UPS.
