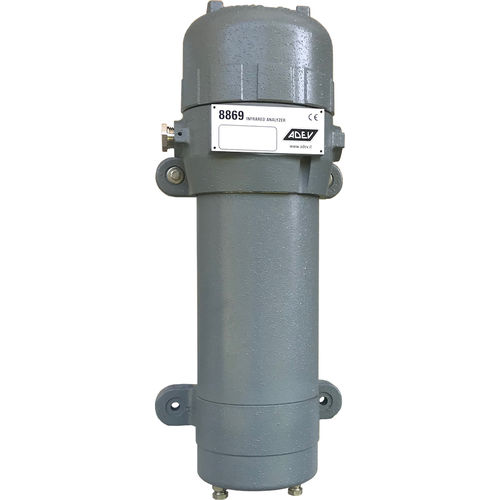

8869 is a rugged process analyser for measuring up to 3 IR-absorbing gases in heavy duty applications in safe area and hazardous area with the best ATEX protection mode (Zone 1 / 21).
Designed to withstand the most severe process conditions, this resilient analyser have no choppers or other moving parts that may affect the reliability.
Measureable Gas
Acetylene [C2H2]
Carbon Monoxide [CO]
Ethylene Oxide (ETO) [C2H4O]
Nitric Oxide [NO]
Styrene [C8H8]
Vinyl Chloride (VCM) [C2H3Cl]
Ammonia [NH3]
Ethanol [C2H6O]
Hydrogen Chloride [HCl]
Nitrous Oxide [N2O]
Sulfur Dioxide [SO2]
Water [H2O]
Carbon Dioxide [CO2]
Ethylene [C2H4]
Methane [CH4]
Propane [C3H6]
Toluene [C7H8]
Xylene [C8H10]
Main Features
Extreme Roughness
No choppers and other moving parts
Wet parts in selected materials for use with gas like pure Ammonia, VCM, HCl and other demanding streams
Resistant to the most severe industrial environments
High Performances
Designed to measure up to 3 IR-absorbing gases with a unique sensing unit
Precision optical filters minimize effects of background gases
Single beam source and no gas-filled cells
A unique source-emission control system allows up to 20% windows fouling without effect on accuracy.
Sensing unit temperature controlled
Insensitive to ambient temperature variations
Easy Maintenance
The sensing unit can be easily disassembled for field maintenance and cleaning.
Modular construction
Fast access to the inner PCB just unscrewing the housing cap
