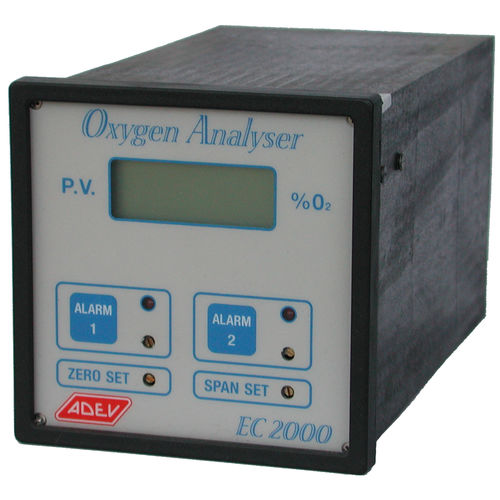

Oxygen analyzer EC2000

processlaboratoryfor the chemical industry

EC2000 series is the entry level of O2 product range for the measurement of Oxygen in % range. Nevertheless, the cell has long operative life and high immunity to the presence of CO2, H2, HC and many other gases in the background. Simple and reliable solution to measure O2 in both safe and hazardous area (ATEX) Zone 1 / Zone 21 Measureable Gas Oxygen [O2] Main Features Cost-Effective Solution Low cost and excellent performance for this kind of instruments Fast response time Long lasting cell with high immunity to the presence of high quantities of CO2, H2, HC and others into the background Very Easy to Use Digital read out with high-resolution 3½ digits display in mobile virgule Two alarms with field selectable threshold Front adjusting for easy calibration and settings Easy Maintenance Very easy plug-in replaceable cell Easy calibrating by trimmers on front panel European Compliance Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU Directive ATEX 2014/34/EU The EC2000 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate. ADEV has a wide experience in process and can provide the EC2000 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details. Measuring Principle The sensors are specific for Oxygen. They measure the partial pressure of Oxygen from low ppm to 100% levels in inert gases, gaseous hydrocarbons, helium, hydrogen, mixed gases, acid gas streams and ambient air.
