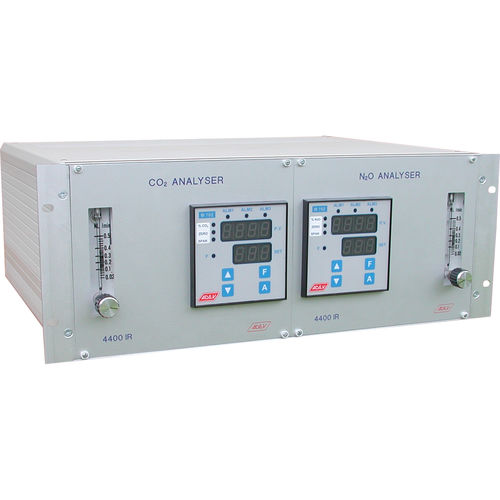

Gas analyzer 4400

oxygennitrous oxidewater

Model 4400 is an extremely all rounded instrument that can integrate different sensing unit modules in order to have a single gas or a multi gas analyser. It is available in transportable version or for rack 19”. Measureable Gas (Paramagnetic / Thermoparamagnetic / Electrochemical Module) Oxygen [O2] Measureable Gas (Thermal Conductivity Module) Hydrogen [H2] Helium [He] Air [Air] Sulfur Dioxide [SO2] Acetylene [C2H2] Argon [Ar] Nitrogen [N2] Special 3-Ranges Calibration for Hydrogen Cooled Generators [TR] Carbon Dioxide [CO2] Nitrous Oxide [N2O] Methane [CH4] Gas listed above can be measured in binary mixtures or non-binary mixtures with cross sensitivity compensation. Measureable Gas (Catalytic Combustion Module) Combustibles Measureable Gas (Infrared Module) Acetylene [C2H2] Carbon Monoxide [CO] Ethylene Oxide (ETO) [C2H4O] Nitric Oxide [NO] Styrene [C8H8] Vinyl Chloride (VCM) [C2H3Cl] Ammonia [NH3] Ethanol [C2H6O] Hydrogen Chloride [HCl] Nitrous Oxide [N2O] Sulfur Dioxide [SO2] Water [H2O] Carbon Dioxide [CO2] Ethylene [C2H4] Methane [CH4] Propane [C3H6] Toluene [C7H8] Xylene [C8H10] Measureable Gas (Dew Point Module) Water [H2O] Main Features Compact Structure, Easy Integration 19” standard panel chassis, modular design, easy integration with other instrument Modular design European Compliance Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU The 4400 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.
