Gas analyzer G405

oxygenmonitoringlaboratory

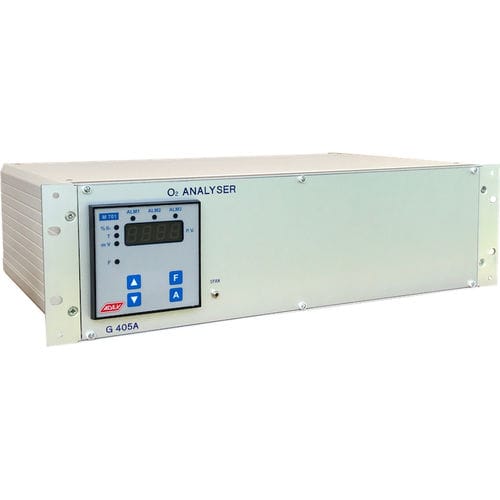

Zirconia analyser for ppm or % Oxygen measurements in non-combustible & inert stream gas. The G405 is an extractive Zirconia analyser housed in a rack 19” case, typically used for in line O2 traces measurements in pure gas or in flue gas. Also available in transportable benchtop case. Measureable Gas Oxygen [O2] Main Features Two Versions Version with solid state reference sensor (micro-pod) for general purpose applications Version with reference air system for low trace O2 and O2 purity measurements Extreme Roughness No inner moving parts Installation position and vibration don’t alter the accuracy and stability of the measure For version with reference air system: completely insensitive to very wide barometric variations High Performances Extremely fast response time Excellent long term stability Inner reference air that eliminates the effect pf barometric pressure variations All parts wetted by gas “Grease Free” for O2 purity applications Ranges from 10 ppm O2 FS up to 100% O2 FS European Compliance Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU The G405 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate. The instrument can integrate some sampling components like filters, pumps, flow meters, pressure reducers, etc… being configured as a compact as analysis system itself and can be used for continuous measurements where process conditions are nor extremely severe (in this case a proper external sample and conditioning system is required).
